■ 基本信息
啟動子: | CMV |
復制子: | pUC |
終止子: | SV40 poly(A) signal，beta-globin polyA signal |
質粒分類: | 哺乳細胞，四環素調控系統載體 |
質粒大小: | 7139bp |
原核抗性: | Amp |
克隆菌株: | DH5a |
培養條件: | 37度 |
表達宿主: | 哺乳細胞 |
誘導方式: | 四環素誘導 |
5'測序引物: | CMV-F：CGCAAATGGGCGGTAGGCGTG |
3'測序引物: | 根據序列設計引物 |
■ 質粒屬性
質粒宿主: | 哺乳細胞 |
質粒用途: | 蛋白表達 |
片段類型: |
|
片段物種: |
|
原核抗性: | Amp |
真核抗性: |
|
熒光標記: |
|
■ 質粒簡介
pTet-On-Advanced expresses an improved version of the reverse Tet (tetracycline)-controlled transactivator protein (rtTA), called rtTA-Advanced (1–4). It is more sensitive to doxycycline (Dox) and yields lower background expression than the original rtTA used in the Tet-On? System (2). The rtTA-Advanced protein is a fusion of amino acids 1–207 of a mutant Tet repressor (TetR) and 39 amino acids containing three minimal "F"-type transcriptional activation domains from the VP16 protein of herpes simplex virus. It is fully synthetic, lacks cryptic splice sites, and is codon-optimized for stable expression in mammalian cells.

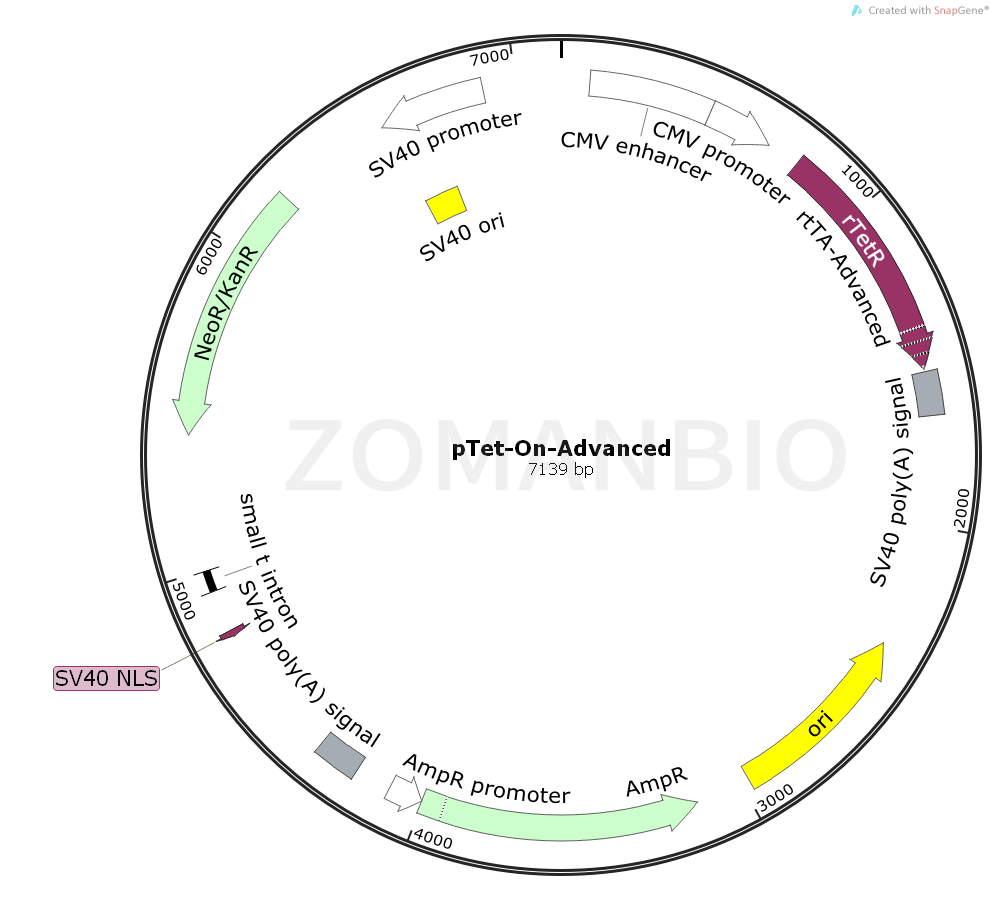

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK693pTet-On-Advanced哺乳調控質粒.txt
